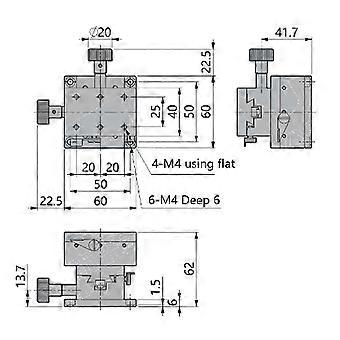

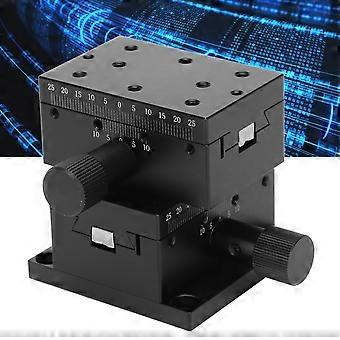

1、The main body is made of aluminum alloy, strong and wear‑resistant, scratch‑resistant and corrosion‑resistant. 2、Adopts gear rotating handle control and dovetail grooves type guide rail, which has high load resistance and stable movement. 3、Great workmanship, the product comes with R angle safety protection, high safety factor. 4、Convenient to use and with good performance, with small size, easy to carry and store. 5、Can be used with peace of mind, with strict quality control and quality assurance. 1 x XY Axis Dovetail Manual Trimming Platform1 x User Manual  Item Type: XY Axis Dovetail Manual Trimming PlatformModel: H2BA-60Table Size: Approx. 40 x 60mm / 1.6 x 2.4inMovement Direction: 2 directions of XY axisBody Material: Aluminum alloy (black anodized)Drive Mode: Rotate the gear, rotate the handle to advanced.Sliding Track: Gear guideRail Type: Dovetail grooves typeNumber of Countertop Threaded Holes: 8Threaded Hole Diameter: Approx. 4mm / 0.2inThreaded Hole Depth: Approx. 6mm / 0.2inWithstand Load: 49N（5Kgf）Moving Stroke: ±Approx. 15mm / 0.6inMinimum Scale: 0.01mmParallelism: 30μmMoving Parallelism: 0.03mm/30mmStraightness: 3μmStructure: DetachableScope of Application: Optical equipment, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, photographic equipment, handling machines, processing machines, printing machines and others.How to Use:  1. The mechanical sliding table is a general component that completes the feed movement. The complete mechanical sliding table is composed of the sliding table part and its moving common parts, the complete mechanical sliding table part and other moving device brakes and other auxiliary parts, which can be based on The process requirements of the processed parts are to install a power box (with multi-axis box) drilling head, boring head, milling head, boring head, turning head, etc., to form various combined machine tools to complete drilling, expansion, Reaming, dimples, end face scraping, chamfering, turning end face, milling, drilling and tapping, etc. Deep hole processing can be completed by configuring a graded feed mechanism on the sliding table (the graded feed mechanism is only used for specifications below HJ32) 2. The sliding table can be installed on the side base or column, and can also be installed on the inclined base to form a horizontal, vertical or inclined combined machine tool.Size: Approx. 20mm / 0.8in 22.5mm / 0.9in25mm / 1in40mm / 1.6in50mm / 2in60mm / 2.4in 41.7mm / 1.6in 13.7mm / 0.5in 1.5mm / 0.1in6mm / 0.2in62mm / 2.4in
