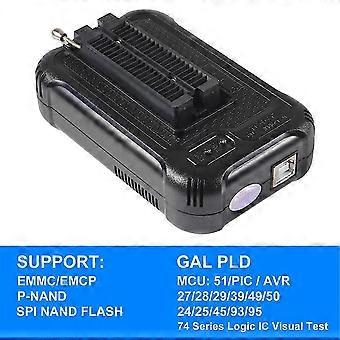

Programming speed much faster. For example, for W25Q80, 3.5s+0.3s(Program+Verify) (30MHZ); for SPI NOR FLASH 25Q128, 30s+5.4s(P+V) (30MHZ); for P_NAND 29F1G08AB, 27s+17s(P+V); for P_NOR FLASH EN29LV320 TSOP48, 24s+1.9s(P+V)...... Support EMMC/EMCP; P-NAND; SPI NAND FLASH; GAL PLD; MCU: 51/PIC/AVR; 27/28/29/39/49/50; 24/25/45/93/95; 74 Series Logic IC Visual Test.

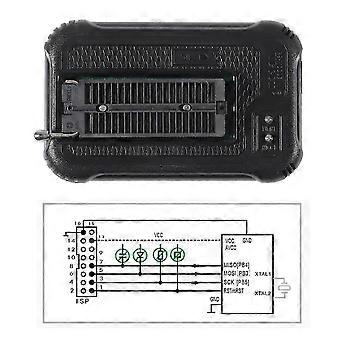

T48 (TL866-3G) hardware Parameters: 32-bit MCU with 120MHZ, 4-layer PCB Design, USB2.0 480MHZ; 16 channel ISP, total 56-channel dedicated IO, 56-channel high-speed high-voltage isolation; VCC voltage 1.8-6.5V 64 levels adjustable, VPP voltage 9V-25V 64 levels adjustable; Power consumption: 5V Less than 500MA.
With 40-pin industrial high-quality ZIF Socket (Pluggable/replaceable), newest model T48 (TL866-3G) programmer is the improvement of TL866II Plus programmer.
Based on 32-bit MCU with 120MHZ and 4-layer PCB design, this professional T48 programmer support high-capacity NAND EMMC up to 256GB and programming speed is much higher. Suppport high-voltage chips, such as 27Cxxx series, VPP Maximum up to 25V, that is what TL866II cannot achieve.
T48 Programmer Support 31000+ ICS for EPROM/MCU/SPI/Nor/NAND Flash/EMMC/IC Tester/ TL866CS TL866II Plus Replacement.
Colour:Black
Material:ABS
Package Contents:
1 x Programmer
1 x USB Cable
1 x ISP Cable
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
-
브랜드:
Unbranded
-
카테고리:
반도체
-
색상:
Black
-
Fruugo ID:
415633290-877368338
-
EAN:
6903379880447
