Sound Amplifier Board Bluetooth-Compatible TDA7498 High-Power Audio Module Supports AUX for Speaker

₩18,890
+ ₩5,299 배송

Sound Amplifier Board Bluetooth-Compatible TDA7498 High-Power Audio Module Supports AUX for Speaker

  • 브랜드: Unbranded

Sound Amplifier Board Bluetooth-Compatible TDA7498 High-Power Audio Module Supports AUX for Speaker

  • 브랜드: Unbranded
희망소매가격: ₩23,890
가격: ₩18,890
절약 금액: ₩5,000 (20%)
판매자::
₩18,890
+ ₩5,299 배송

재고 있음

다음의 결제 방식을 사용하실 수 있습니다

설명

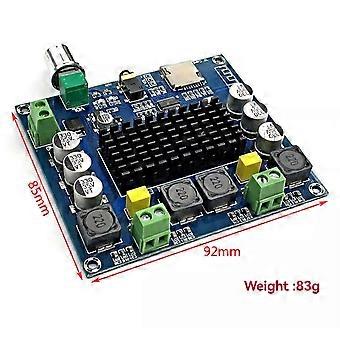

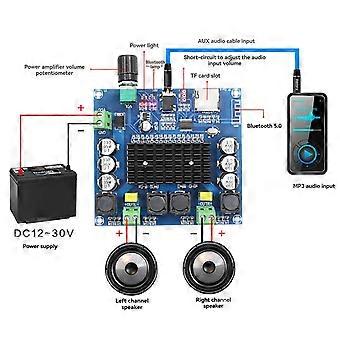

XH-A105 Bluetooth 5.0 TDA7498 Digital Amplifier Board 2x100W Stereo Audio AMP Module Support TF Card AUX This digital power amplifier board with high fidelity and two-channel stereo sound quality; input voltage is DC 12~30V, audio input supports Bluetooth, TF card, AUX 3.5mm audio line input, can be directly connected to mobile phone, MP3, etc.; power amplifier board It also comes with a volume adjustment function, which rotates the potentiometer clockwise to zoom in and counterclockwise to decrease. Product Name: Two-channel Bluetooth 5.0 power amplifier board Input voltage: DC12-30V. Amp Chip:TDA7498 Output impedance:4~8 ohm Speaker. Support Format:FLAC/APE/MP3/WMA/WAV. Current: 3A. Output power: 100W x 2. Audio input: Bluetooth, TF card, AUX Number of channels: two channels Size: 92 x 85 x 10MM Installation aperture: 3MM Installation hole distance: 85 x 5 x 78.5MM Bluetooth operation instructions: When the power amplifier board is connected to the power supply and the Bluetooth is not connected, the Bluetooth indicator flash . When the Bluetooth connection is successful, the Bluetooth indicator stop flashing. When the song is played, the Bluetooth indicator flash slowly. Note: 1. Connect the power input to the DC12-30V power supply. When the power is on, the power indicator light red and the blue light flash blue. 2. Connect the audio input to the audio source, such as MP3, mobile phone, computer, TF card, etc. 3. Connect the audio output to the speaker, paying attention to the positive and negative. Bluetooth / TF card volume hole: When the audio input uses Bluetooth or TF card, you can connect the power cord to the "+ VOL -" three holes to adjust the volume and switch songs. 1. "+" and "VOL" connection: short connection to play the previous song, long connection to increase the volume 2. "-" and "VOL" connection: short connection to play song, long connection to reduce the volume Color: As Shown Material: Electronic Component Package Contents: 1 * digital amplifier board Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
  • Fruugo ID: 416602806-879044818
  • EAN: 4712095714095
