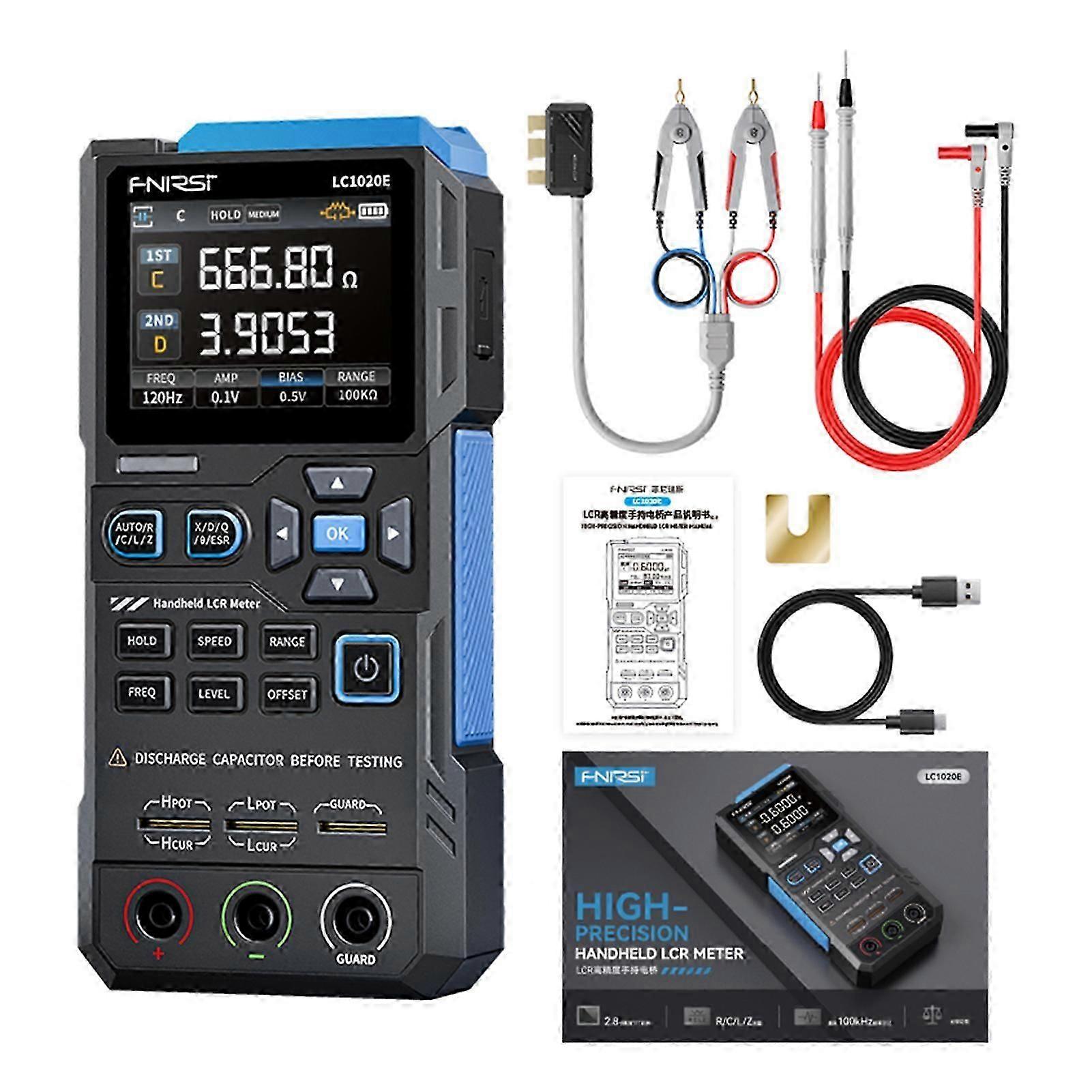

Handheld Digital Multimeter LC1020E for Resistor/Capacitor/Inductor Testing 100H

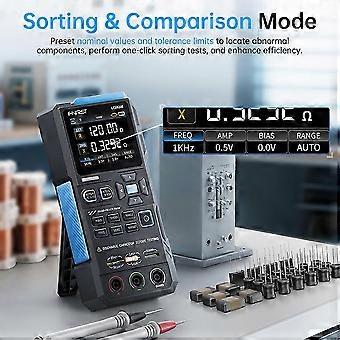

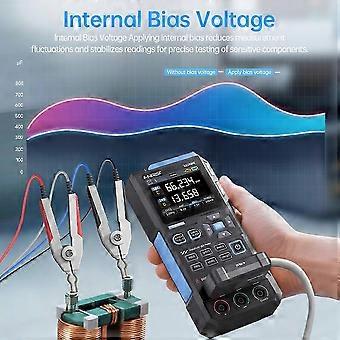

FNIRSI LC1020E Handheld LCR Bridge Meter - Professional Handheld Digital Multimeter for Resistor/Capacitor/Inductor Testing, 100Hz - 100KHz : Display: 2.8-inch TFT-LCD display Basic Accuracy: 0.3% Display Digits: Main Parameter: 4.5 digits; Secondary Parameter: 4.5 digits Test Frequency: 100Hz, 120Hz, 1KHz, 10KHz, 100KHz Test Level: 0.1V, 0.3V, 0.6V Internal Bias: 0.0V, 0.5V Measurement Parameters: Main Parameters: AUTO/R/C/L/Z; Secondary Parameters: X/D/Q/θ/ESRs Measurement Range: L: 0-100H, C: 0-100mF, R: 0-10MΩ Measurement Speed: Fast (4 times/s), Medium (2 times/s), Slow (1 time/s) Calibration Functions: Open circuit calibration, Short circuit calibration Comparison Function: Used to calculate the relative error between the component measurement value and the nominal value, displayed as a percentage, and provides filtering results. Nominal values and tolerance can be set, with a tolerance range adjustable from 0.1% to 99.9%. Record Function: Checks if the measured component data meets the set nominal value and tolerance, recording the number of successful and failed measurements. Test Terminal Configuration: Three-terminal, Five-terminal Output Impedance: 100Ω Communication Interface: USB-TypeC (Virtual serial port) Other Features: Language settings, Screen brightness, Sound settings, Auto power-off, Calibration settings, System information. Packing list 1. LC1020E LCR Meter 2. Data Cable 3. Shorting Plate 4. Kelvin Test Clip 5. Test Leads (Black+Red) 6. User Manual Package List: 1 Set LC1020E Handheld Digital Bridges LCR Tester
