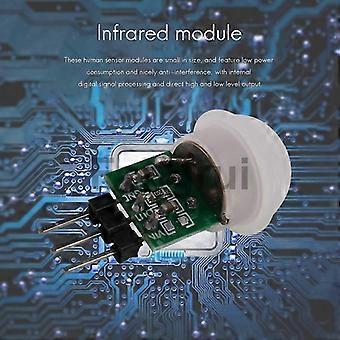

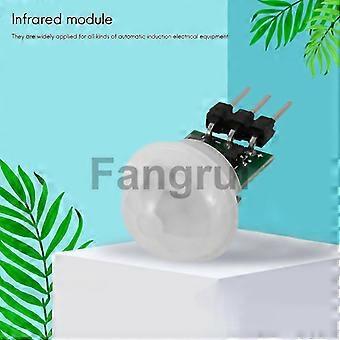

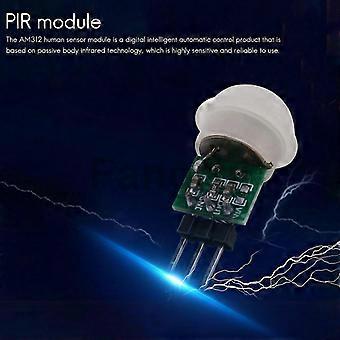

Fangrui Product Details The Am312 Human Sensor Module Is A Digital Intelligent Automatic Control Product That Is Based On Passive Body Infrared Technology, Which Is Highly Sensitive And Reliable To Use. They Are Widely Applied For All Kinds Of Automatic Induction Electrical Equipment. These Human Sensor Modules Are Small In Size, And Low Power Consumption And Nicely Anti-interference, With Internal Digital Signal Processing And Direct High And Low Level Output. After High Sensing Output, During The Delay Time, If A Human Body Is Active Within Its Sensing Range, Its Output Will Keep High Until The Delay After The People Leaves, Then It Will Become Low Product Model: Am312 Working Voltage: Dc 2.7v - 12v Static Power Consumption: Less Than 0.1ma Delay Time: 2 Seconds Blocking Time: 2 Seconds Trigger Mode: Repeatable Sensing Range: Less Than Or Equal To 100 Degrees Cone Angle, 3 - 5 M (depend On The Specific Lens) Working Temperature: -20 Celsius To +60 Celsius Pcb Size: Approx. 10 X 8mm Model: Miniature Human Body Sensor
