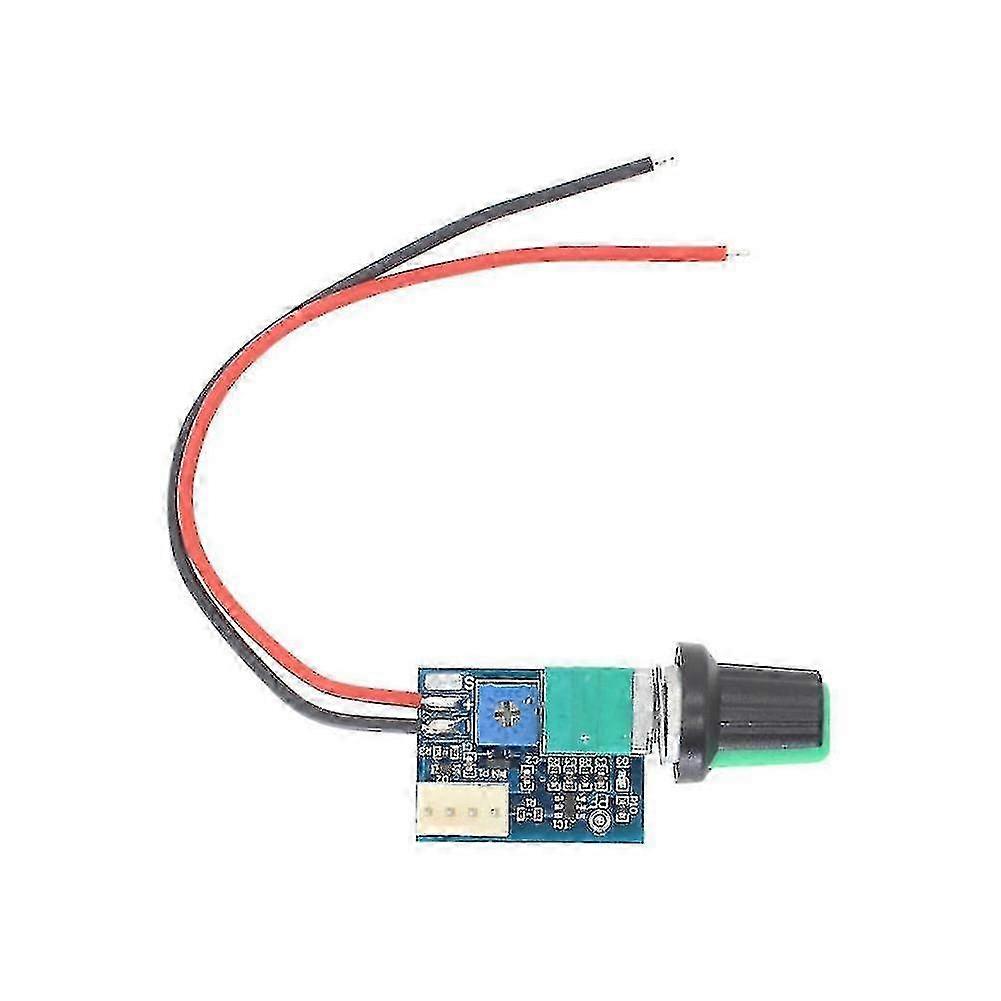

Dc 12v Adjustable 0%-100% Pwm Fan Speed Controller With Knob Switch 4 Wire Fan Speed Governor Noise High Quality Using high-quality materials, the quality is guaranteedWith switch, can be turned off.The appearance of the product is exquisiteSimple and convenient wiring.Stable performanceProduct parameters:Working voltage: DC12V (can work under 8-15V voltage, please pay attention to the fan voltage). Fan current: no more than 3A, this current is limited by switches and connectors, and can be expanded by lines alone. Loss of circuit board itself: less than 20mA without fan. PWM signal mode: 5V25KHZPWM signal output range: 0%-100%. position PWM adjustment range: 0%-60%. Output interface : 2510-4P dislocation, conventional CPU, chassis fan socket, pin spacing 2.54mmFunction Pay attention to the positive and negative poles and the supply voltage. After the supply fan is connected, it can be used. The potentiometer is turned off counterclockwise to , and the clockwise end is the maximum output.A separate small adjustable resistor (starting speed adjustment) on the board is used to adjust the speed of the just-open positionIf the speed change of the fan is opposite to the adjustment direction, it means the fan is a reverse-sequence fan, and the (PF) setting needs to be short-circuited with solder, and the must be cut off before operation to avoid damage The short-circuited PWM signal changes in the reverse direction with the adjustment, and the reverse-sequence fan can realize forward adjustment.Precautions:This is a four-wire PWM fan speed controller. It can only control 12V four-wire fans support PWM speed regulation. For example, many 12V four-wire chassis or CPU fans cannot control 2-3-wire fans.Colour:As ShownMaterial:plastic+metalPackage Contents:1 x ModuleOnly the above package content, other products are not included.Note: Light reflection and different displays may the color of the item in the a little different from the real thing. The measurement allowed error is +/- 1-3cm.
