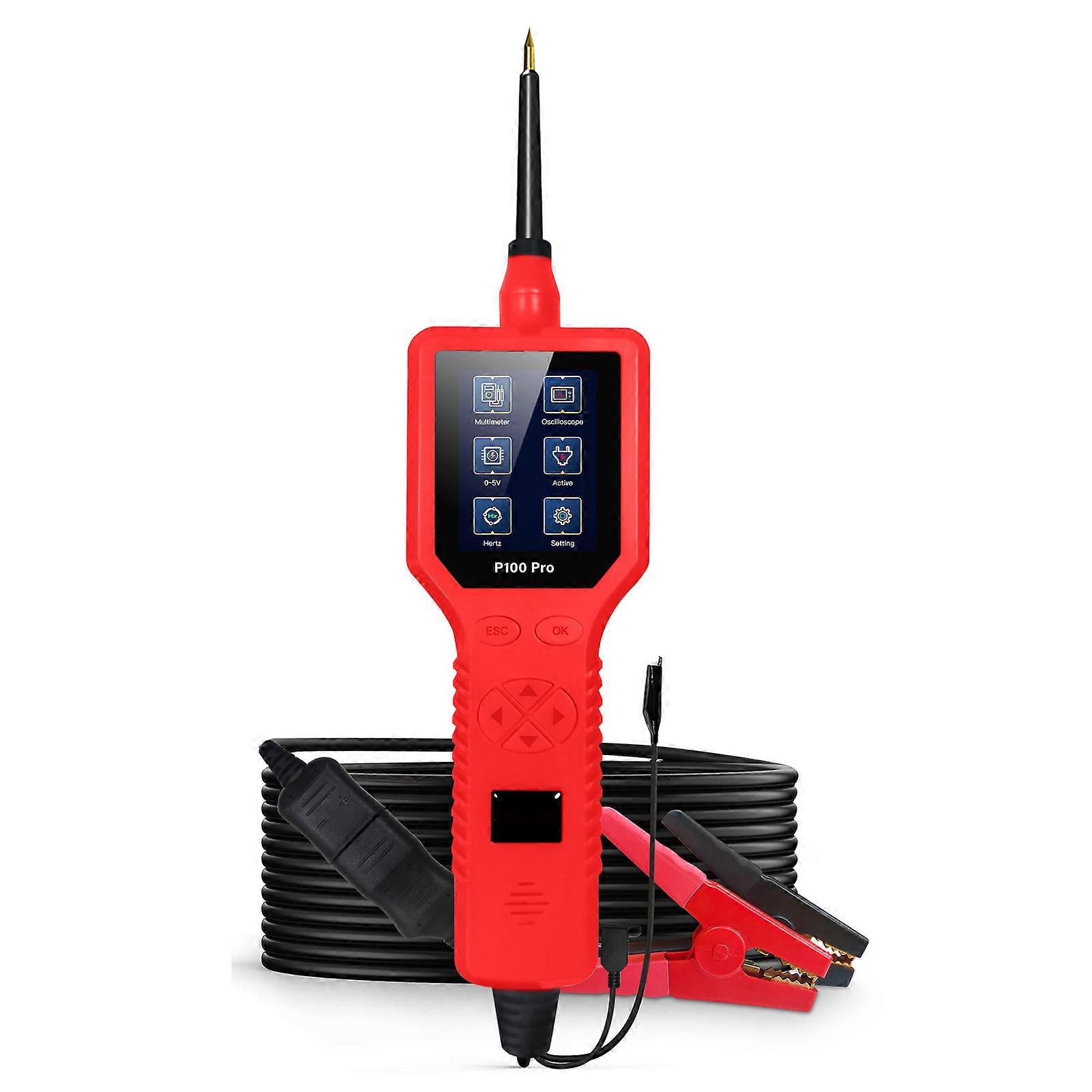

Feature 1Easy to Use: Multimeter and oscilloscope are integrated, large 3.2 horizontal screen display, intuitive menu interface, easy to learn and use, long extension cable, car and truck can realize the whole circuit detection with simple operation. 2Intelligent Digital Display: Meet all the functions of the multimeter (VDC/OHM/DIO/AMP/HZ), can continuously test the circuit or components of the circuit system, automatically measure the resistance and voltage, and intelligently judge the positive and negative electrodes of the circuit battery. 3Oscilloscope Function: The high grade automotive power circuit analyzer features the function of oscilloscope, the maximum analog bandwidth is 50KHz, and the maximum sampling rate is 800KSa/s, greatly bring you more convenience. 4Component Activation: Used to generate activation signals to the detected components, such as activating lights. There are two activation methods, positive activation and negative activation. The maximum current through activation can reach 20A. There are three activation methods: MOMENT, LACH, and PULSE. 505V Power Supply Mode: The voltage output by the sensor can be simulated to the ECU to verify the wiring of the ECU. It can easily generate a variable DC voltage (05V) for emergency scenarios where there is no adjustable power supply, but a small voltage connection is required. 6Use of Adjustable Power Supply: 1. Set the electric pen to output a suitable voltage (up to 5V 200mA); 2. It can be connected to the power supply terminal of lowvoltage power supply equipment (ECU, sensor); 3. Observe.Item Type: Car Circuit AnalyzerMaterial: PlasticFunction:1. Intelligent identification of voltage and resistance2. Multimeter mode (measure voltage, resistance, diode, continuity)3. Oscilloscope function4. Frequency5. Activation of vehicle components6. 0-5V adjustable power supply7. Network online upgrade8. Built in multiple languagesWorking Temperature: 0-60 (32-140)Storage Temperature: -40 to 70 (-40 to 185 )External Power Supply: 12V or 24V powered by battery (not included)Minimum Working Voltage: 9VMaximum Working Voltage: 30VMaximum Measuring Voltage: 100VMinimum Measuring Voltage: 0.1VResistance Measurement Range:1ohm - 200K ohmActive Current Measuring Range: 0-18AMaximum Continuous Current: 18A .wang-edit-text{ font-family:'Arial' !important; } .wang-edit-text table { border-top: 1px solid #000; border-left: 1px solid #000; } .wang-edit-text table td, .wang-edit-text table th { border-bottom: 1px solid #000; border-right: 1px solid #000; padding: 3px 5px; } .wang-edit-text table th { text-align: center; }Package List1 x Tester1 x Manual1 x Cable2 x Probe1 x USB Cable2 x Cable1 x Storage Bag(Random delivery)
