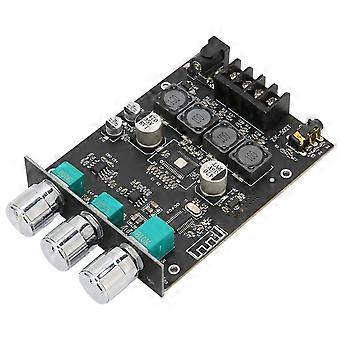

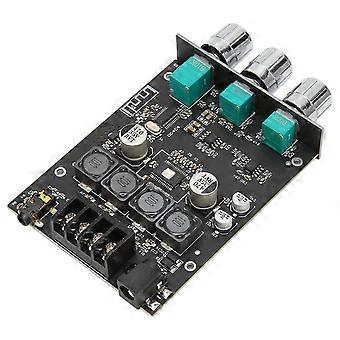

1[Use Of Power Supply] Recommended to use 18V 19V 24V power supply, current 5A or more. If 9V 12V or 1A 2A power supply, you can also use but the power is small, note that when using the volume to the maximum may be distorted, affecting the sound quality. 2[Application] The higher the voltage of the BT amplifier module, the higher the current, the more output power, if you have only 12V 1A, so you can use for 3 to 4 inch speakers. If you are 19V 5A or more, can easily be used to take 8 to 10 inch speakers. 3[2 Sound Input] This sound amplifier module has two sound input modes, one is BT input, one is AUX input, BT mode takes precedence. No matter in which mode BT can be connected. Meet your different needs of use, and use after assembly. 4[Mode Use] BT connection is successful is the BT mode, support automatic back connection. BT is not connected when AUX is inserted is AUX mode. Note that when using AUX mode, you need to confirm that the module's BT connection has been disconnected. 5[BASS Potentiometer] The BASS potentiometer in the middle of the amplifier receiver board is to control the bass, right rotation bass enhancement, left rotation bass attenuation. When the potentiometer is in the middle position, the bass is not enhanced and not attenuated. 6[TREBLE Potentiometer] BT amplifier board on the left side of the TREBLE potentiometer is to control the treble, right rotation treble enhancement, left rotation treble attenuation. When the potentiometer is in the middle position, the treble is not enhanced and not attenuated.
-
브랜드:
Unbranded
-
카테고리:
부대용품
-
Fruugo ID:
334322576-736729208
-
EAN:
9441840062413
제품 안전 정보
아래에 설명된 이 제품과 관련된 제품 안전 정보를 참조하십시오.
以下の情報は、この製品を販売する独立したサードパーティ小売業者によって提供されています。
안전 경고:
Warning to keep away from water to prevent electric shocks.
