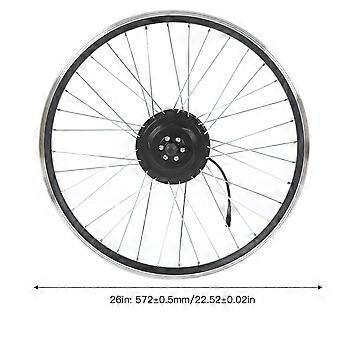

36V 500W Bike Motor Wheel Kit Bike Modified Brushless Toothed Motor Kit Front Drive Kit with LCD3 Panel Configuration 26inch Item Type: Bike Lithium Battery Modified Front Drive Brushless Gear Motor Kit Material: Stainless Steel, Aluminum Alloy, ABS Plastic, Metal Motor Wheel Type: front drive brushless toothed motor Motor Rated Power: 500W Motor Speed: about 30-32km/h Motor Speed: 265-325Rpm Motor Torsion (N.M): 60-63N.M Motor Opening Size(mm): Approx.100mm / 3.9in Motor Matching Controller Current: 22A Motor Ring: P19D Motor Torsion Arm: M14 Motor for Brake Disc: Approx.160mm / 6.3in Motor Brake Type: V brake, disc brake universal Motor Wheel Position: front wheel Motor Structure: brushless gear motor Motor Magnet Height: 22H Number of Magnetic Steel Poles of Motor: 20 Motor Operating Temperature: -20 ℃-45℃ Controller Connector Type: common connector (except motor waterproof connector) Controller Rated Current: 11A controller Maximum Current: 22±1A Controller Speed Setting: 1-4.2V Controller Brake Input: low level Controller Line Definition: 1. Black single wire (thick): motor 2. Five pin multicolor thread: meter 3. Black red single wire: power supply x 2 4. Yellow, black and brown three pin: magnetic point power 5. Multi color three hole line: throttle 6. Multicolor two hole line: brake x 2
