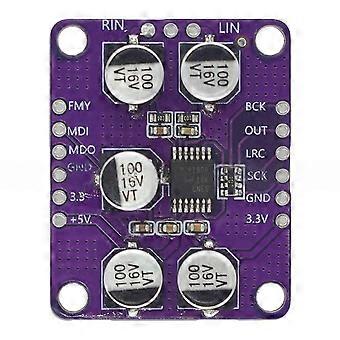

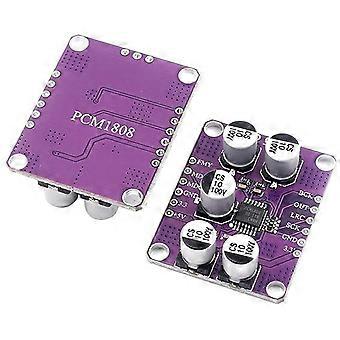

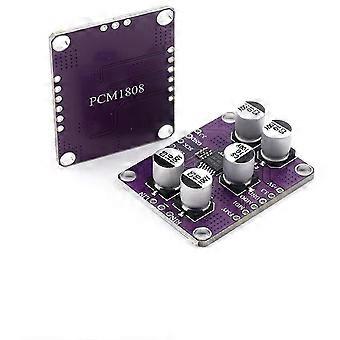

2PCS PCM1808 Audio Stereo Decoder ADC Single-Ended Analog-Input Decoder 24bit Amplifier Board Player Module

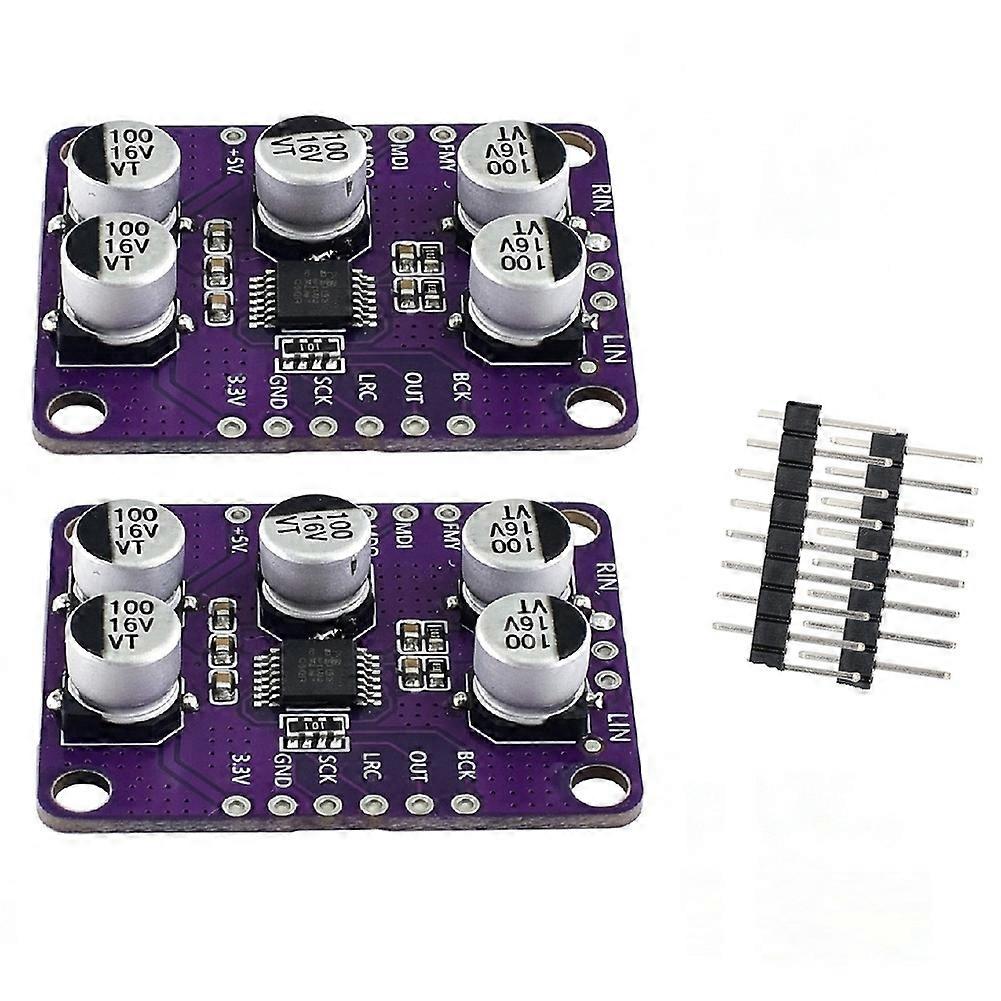

Features: 24-bit Delta-Sigma Stereo A/D Converter Single-ended Voltage Input: 3 Vp-p High Performance: THD + N: -93 dB (typical) SNR: 99 dB (typical) Dynamic Range: 99 dB (typical) Oversampling Decimation Filter: Oversampling Frequency: x64 Passband Ripple: ±0.05 dB Stopband Attenuation: -65 dB On-chip High-pass Filter: 0.91 Hz (at 48 kHz sampling rate) Flexible PCM Audio Interface Master or Slave Mode selectable Data Formats: 24-bit I2S, 24-bit left-justified Power Down and Reset via Suspension of System Clock Includes Analog Anti-Alias LPF Sampling Rates: 8 kHz - 96 kHz System Clock: 256 fS, 384 fS, 512 fS Resolution: 24-bit Dual Supply: 5V for Analog 3.3V for Digital Color: Purple Material: PCB Package Contents: 2 * PCM1808 Audio Stereo Decoder Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
