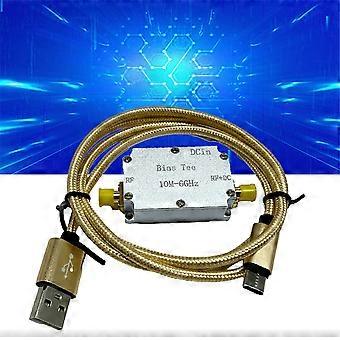

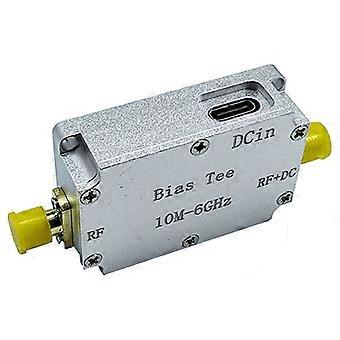

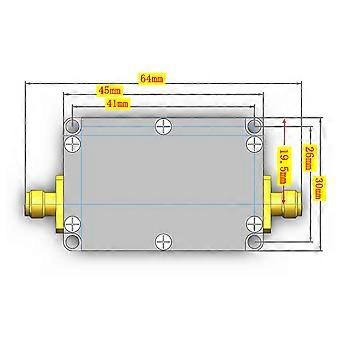

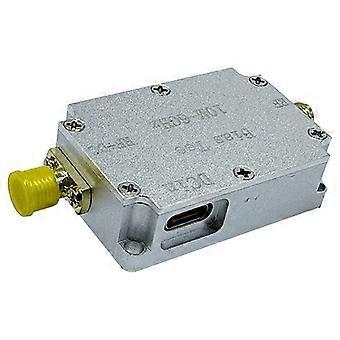

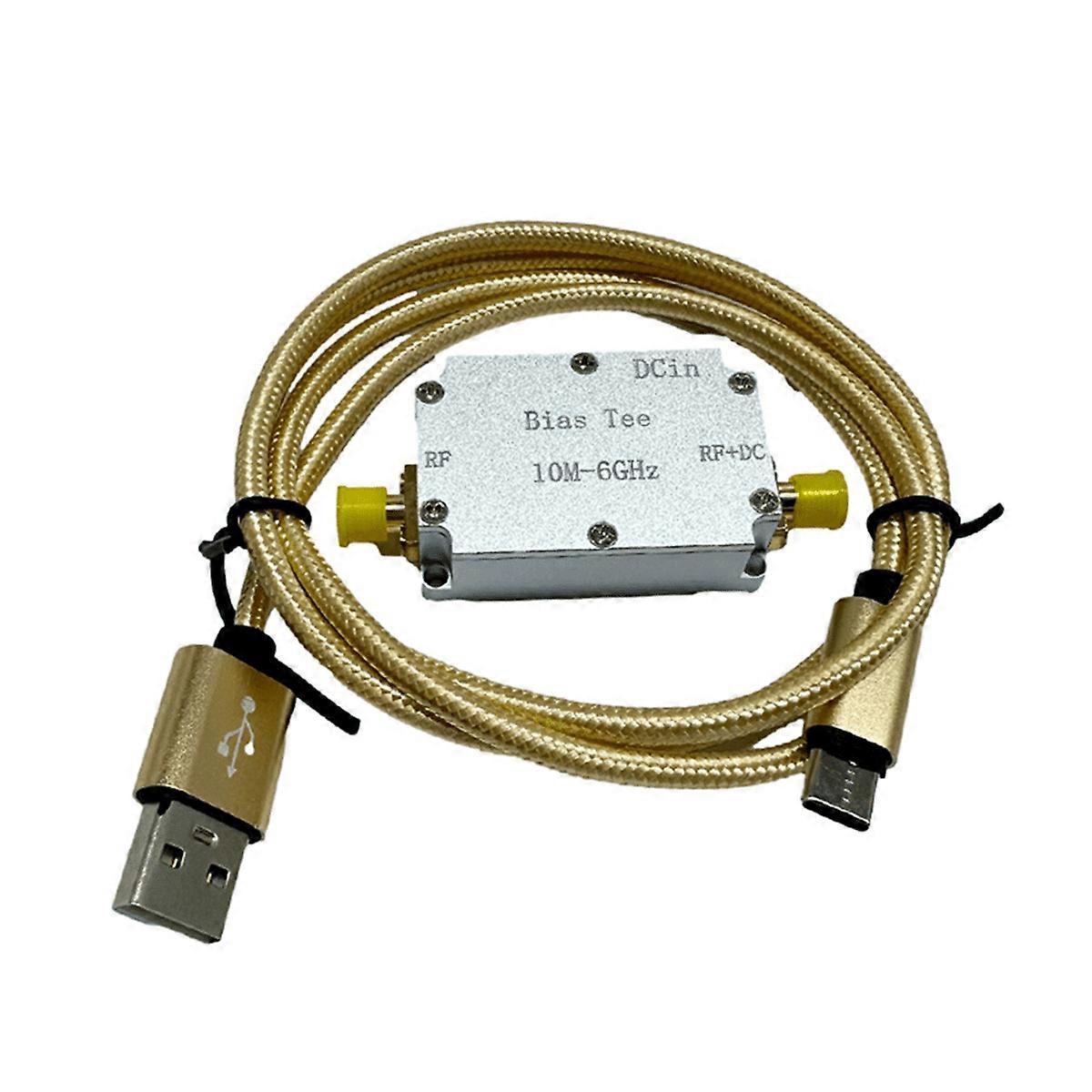

1. Working frequency: 10M-6GHz 2. Insertion loss: less than equal 1dB (refer to the actual measured S21 S11 curve for details) 3. Normal working voltage of DC blocking: DC-250V [nominal voltage resistance value of DC blocking capacitor is 250V, high frequency microwave low insertion loss capacitor] 4. Normal working voltage and current of the feed: less than equal 350mA [The feed current is mainly related to the current limit of the feed inductor. The microwave RF inductor currently used is 350mA; the maximum feed voltage is 50V Powered through the TYPE-C interface 5. Input and output impedance 50ohm, input and output interface SMA (external spiral inner hole-female) Application Scenario:Antenna Radio Frequency Feed Dc Isolation Is Required When Connecting Instruments When Testing The Module [Spectrum Analyzers And Signal Sources Cannot Be Directly Connected To Dc, So Dc Isolation Is Required. Note:Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use Colour:As Shown Material:Plastic+Metal Size:Module Size:About 4.5x3x1.4cm (Excluding Protruding Sma) Package Contents: 1 * Microwave Capacitor Module 1 * TYPE-C Cable Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm. Rf Feed Box Biaser Module Coaxial Feed
